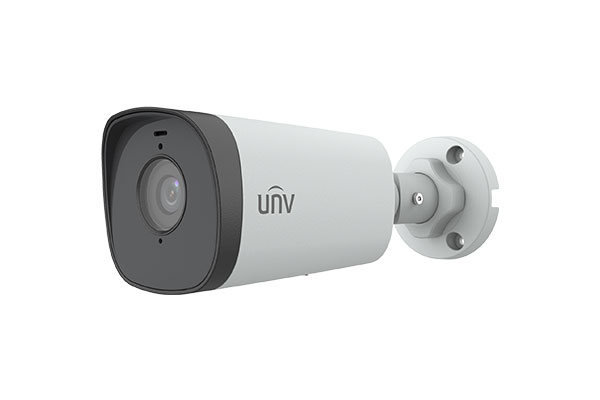

IPC325LR3-VSPF28-D

Model
IPC325LR3-VSPF28-D

Camera

Sensor
1/2.7″, 5.0 megapixel, progressive scan, CMOS

Lens
2.8mm@F2.0

DORI Distance
Lens (mm)
Detect (m)
Observe (m)
Recognize (m)
Identify (m)

2.8
42
16.8
8.4
4.2

4.0
60
24
12
6

Angle of View (H)
105.3°

Angle of View (V)
69.5°

Angle of View (O)
136.9°

Adjustment angle
Pan: 0° ~ 360°

Shutter
Auto/Manual, 1 ~ 1/100000s

Minimum Illumination
Colour: 0.01Lux (F2.0, AGC ON)
0Lux with IR

Day/Night
IR-cut filter with auto switch (ICR)

Digital noise reduction
2D/3D DNR

S/N
>52dB

IR Range
Up to 30m (98ft) IR range

WDR
DWDR

Video

Video Compression
Ultra 265, H.265, H.264, MJPEG

H.264 code profile
Baseline profile, Main Profile

Frame Rate
Main Stream: 5MP (2592*1944), Max 20fps;
Sub Stream:720P (1280*720), Max 20fps

HLC
Supported

BLC
Supported

OSD
Up to 4 OSDs

Privacy Mask
Up to 8 areas

ROI
Up to 2 areas

Motion Detection
Up to 4 areas

Smart

Behavior Detection
Intrusion, Motion detection,Tampering alarm

Intrusion
Enter and loiter in a pre-defined virtual region

Network

Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS

Compatible Integration
ONVIF (Profile S, Profile T), API

Interface

Network
10M/100M Base-TX Ethernet

General

Power
DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 4W

Dimensions (Ø x H)
Φ109 x 81mm (Ø4.3” x 3.2”)

Weight
0.45kg (0.99lb)

Working Environment
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Ingress Protection
IP67

Vandal Resistant
IK10
