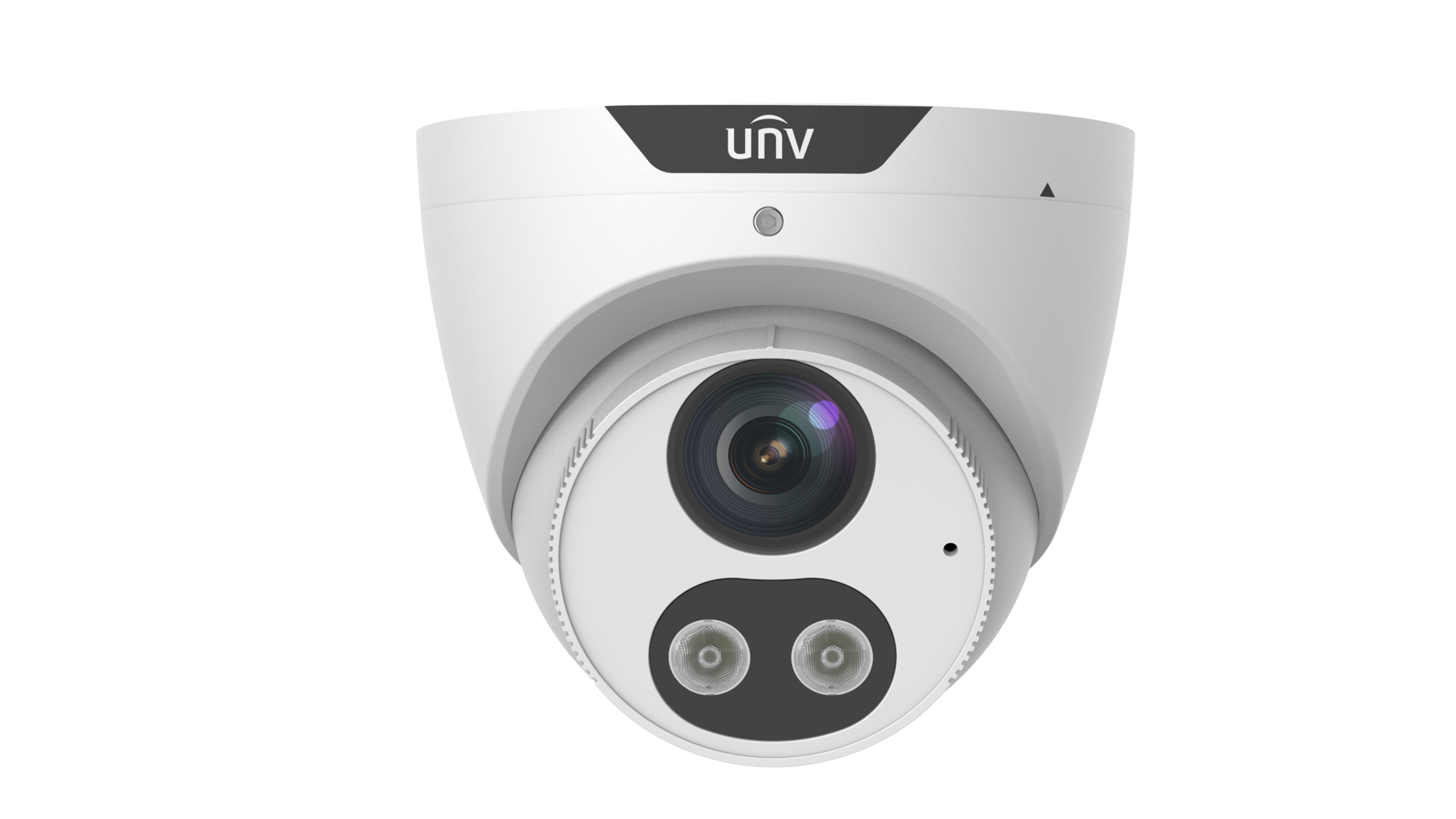

IPC324LR3-VSPF28-D 4MP

MODEL
IPC324LR3-VSPF28-D

Camera

Sensor
1/3″, progressive scan, 4.0 megapixel, CMOS

Lens
2.8mm@F2.0

DORI Distance
Lens
Detect(m)
Observe(m)
Recognize(m)
Identify(m)

2.8mm
42
16.8
8.4
4.2

4.0mm
60
24
12
6

Angle of View (H)
104.4°

Angle of View (V)
54.4°

Angle of View (O)
135.7°

Adjustment angle
Pan:   0°~360°

Shutter
Auto/Manual, 1~1/100000 s

Minimum Illumination
Colour: 0.03 Lux (F2.0, AGC ON)
0Lux with IR

Day/Night
IR-cut filter with auto switch (ICR)

Digital noise reduction
2D/3D DNR

S/N
>52dB

IR Range
Up to 30m (98 ft) IR range

Defog
Digital Defog

WDR
DWDR

Video

Video Compression
Ultra 265,H.265,H.264,MJPEG

H.264 code profile
Baseline profile, Main Profile, High Profile

Frame Rate
Main Stream:4MP (2592*1520): Max. 20 fps;
Sub Stream:720P (1280*720): Max. 20 fps;
Third Stream:D1 (720×576): Max. 20 fps

HLC
Supported

BLC
Supported

OSD
Up to 4 OSDs

Privacy Mask
Up to 8 areas

ROI
Up to 2 areas

Motion Detection
Up to 4 areas

Network

Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL

Compatible Integration
ONVIF(Profile S, Profile T), API

Interface

Network
1 RJ45 100M Base-TX Ethernet

General

Power
DC12V±25%, PoE (IEEE802.3 af)

Power consumption: Max.4w

Dimensions (Ø x H)
Φ109 x 81mm (Ø5.8” x 4.4”)

Weight
0.35kg (0.77lb)

Working Environment
-30°C~+60°C (-22°F ~ 140°F), Humidity : 10%~90% RH (non-condensing)

Ingress Protection
IP67

Vandal Resistant
IK10
